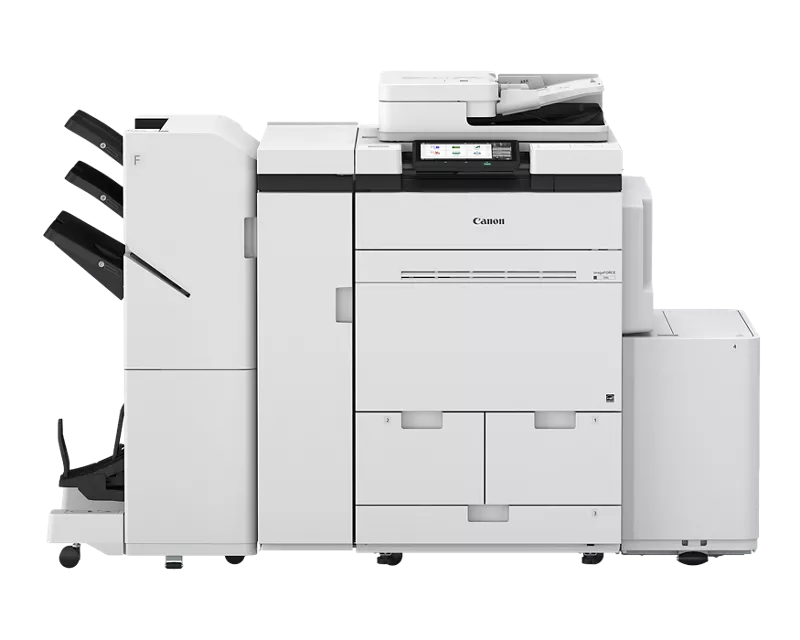

imageFORCE 8186

Description

Part of the imageFORCE 8105 / 8195 / 8186 family.

Full Specifications

• Copy: Standard
• Mail Box: Standard
• Advanced Box: Standard
• Network Print: Std.
• Network Scan: Standard
• Fax: Opt. (Up to 2-Lines)
• Send: Std. Color Send
• Scan to USB/Print from USB: Standard
• Web Access: Standard
• Access Management System: Standard
• Unified Firmware Platform (UFP): Standard
• MEAP: Standard
• Wi-Fi Connectivity: Optional
• Output Speed (BW / Color): 86 ppm
• First Copy Out Time: Approx. 5.6 Seconds
• Warm-up Time (From Power On): Approx. 120 Seconds*
• User Interface: 10.1″ TFT LCD WSVGA Color Flat-panel
• Customizable Background: Std.
• Memory: Std. 6.5GB
• Storage Capacity: Std. 256 GB (SSD) / Max 1 TB (SSD)
• Standard Paper Capacity: 4,360 Sheets
• Maximum Paper Capacity: 9,360 Sheets
• Paper Weights: 14lb. Bond to 80lb. Cover (52 to 220 g/m2) (Decks/Cassettes); 14lb. Bond to 140lb. Index (52 to 256 g/m2) (Multi-Purpose Tray)
• Max. Output Size: 13″ x 19″
• Dimensions (W x D x H): Standard: 26-3/8″ x 30-3/8″ x 46-5/8″; (670 mm x 770 mm x 1,185 mm)
• Power Requirement/Plug: 110-127V, 60Hz, 16A / NEMA 5-20P
• Typical Electricity Consumption (TEC) v3.0 [One Week]: 0.38 Wh/image
• Power Consumption: Maximum: 2,235 W; Sleep Mode: 10.9 W
• Optimum Zone (Monthly): 40-200K Pages
• Drum Type and Yield***: A-Si Drum; 6 Million Pages
• Toner Yield***: Black: 90,500 Pages @ 6%
• Document Feeder & Capacity: Std. Single Pass DADF/200 Sheets
• Scan Speed (BW/Color, Letter): Simplex: 135/135ipm (300 dpi), 80/80ipm (600 dpi); Duplex: 270/270ipm (300 dpi), 160/90ipm (600 dpi)
• Output Capacities / Trays: 250 Sheets (Opt. Copy Tray-R2)
• Output Capacities / Finishers (Opt.): 3,500 Sheets (Staple Finisher-AC1** or Booklet Finisher-AC2**)[imageFORCE 8186]; 4,250 Sheets (Staple Finisher-AQ1 or Booklet Finisher-AQ1); 5,000 Sheets (Staple Finisher-AG1 or Booklet Finisher-AG1)
• Staple Capabilities (Opt.): 65 Sheets [On Demand] (Staple Finisher-AC1 or Booklet Finisher-AC2); 10 Booklet Sets [20 Sheets] (Booklet Finisher-AC2); 4 Sheets Eco-Staple (Staple Finisher-AC1 or Booklet Finisher-AC2); 100 Sheets (Staple Finisher-AQ1 or Booklet Finisher-AQ1); 5 Booklet Sets [20 Sheets] (Booklet Finisher-X1); 100 Sheets (Staple Finisher-AG1 or Booklet Finisher-AG1); 25 Sheets [Sets vary based on paper weight] (Booklet Finisher-AG1)
• Hole Puncher(s) and others (Opt.): Puncher Unit-BY1 (with Staple Finisher AQ1 or Booket Finisher AQ1); Puncher Unit-BS1 (with Staple Finisher AG1 or Booklet Finisher AG1); Multi Function Pro Puncher-C1 (with Staple Finisher AQ1 , Booklet Finisher AQ1, Staple Finisher AG1, or Booklet Finisher AG1); Inner Booket Trimmer-A1 (with Booklet Finisher AQ1); Booklet Trimmer-G1 (with Booklet Finisher AG1); Document Insertion Unit-R1 (with Staple Finisher AQ1, Booklet Finisher AQ1, Staple Finisher AG1, or Booklet Finisher AG1); Paper Folding Unit-K2 (with Staple Finisher AQ1, Booklet Finisher AQ1, Staple Finisher AG1, or Booklet Finisher AG1)
• Printer Controller(s) (Supported PDLs): Std. UFR II, PCL6, Adobe® PostScript® 3TM
• Network Interfaces: Standard: 1000Base-T/100Base-TX/10Base-T; Optional: Wireless LAN(IEEE 802.11a/b/g/n/ac/ax)
• Other Interfaces: Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1; Optional: Serial Interface, Copy Control Interface
• Delivery Options: Standard: E-Mail, I-Fax (SMTP, POP3), File Server (FTP, SMB, WebDAV), ; Mail box, Advanced Box; Optional: Super G3 Fax, IP Fax
• Authentication/Access Control: Standard: Universal Login Manager, 17 User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in; Optional: uniFLOW
• Document Security: Standard: Trusted Platform Module 2.0 (TPM), Solid State Drive Password Lock, Mail Box Password Protection, Solid State Drive Encryption (FIPS140-3, Verify System at Startup with Firmware Resiliency, McAfee Embedded Control & Status Display Optional: Solid State Drive Mirroring, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention****
• Network Security: Standard: Encrypted Secure Print, IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration
• Device Security: Standard: Secure Watermark, Secure Print, Adobe LiveCycle Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Digital Signature ; Optional: User Signature Document Scan Lock
• Send File Formats: Standard: TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, PDF A/1-b, Limited Color Device Signature ), XPS (Compact, Searchable, Device Signature ), Office Open XML (PowerPoint, Word); Optional: PDF (Trace & Smooth, User Signature ), XPS (User Signature )
• Fax Memory: up to 30,000 pages
• Environmental Information: ENERGY STAR® certified, RoHS Compliant, ; WEEE Directive, EPEAT® Gold
• Accessibility Options: Std: Remote Operator’s Software Kit; Opt: Braille Label Kit-G1, ADF Access Handle-A1, Voice Operation Kit-D1
