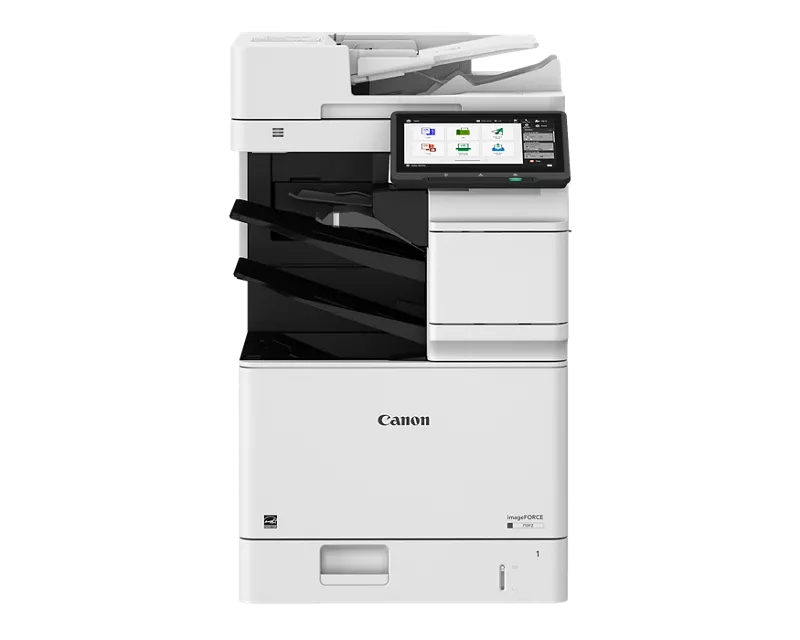

imageFORCE 520FZ

Description

Part of the imageFORCE 710F/710FZ/610F/6101FZ/520F/520FZ family.

Full Specifications

• Copy: Std.
• Mail Box: Std.
• Advanced Box: Std.
• Network Print: Std.
• Network Scan: Std.
• Fax: Std.
• Send: Std.
• Scan to USB/Print from USB: Std.
• Web Access: Std.
• Access Management System: Std.
• Unified Firmware Platform (UFP): Std.
• MEAP: Std.
• Wi-Fi Connectivity: Std.
• Output Speed (BW / Color): 710F/FZ: 75 ppm ; 610F/FZ: 65 ppm; 520F/FZ: 55 ppm
• First Copy Out Time: Approx. 5 Seconds or less
• Warm-up Time (From Power On): Approx. 10 Sec.
• User Interface: Std. 10.1″ TFT LCD WSVGA Color Touch panel
• Customizable Background: Std.
• Memory: Std. 4.5GB
• Storage Capacity: Std. 256GB (SSD)
• Standard Paper Capacity: 650 Sheets
• Maximum Paper Capacity: 3,200 Sheets
• Paper Weights: 16 lb. Bond – 36 lb. Cover (60 to 135 g/m2) (Cassette); 16 lb. Bond – 75 lb cover (60 to 200 gsm) (Multi Purpose)
• Max. Output Size: 8 1/2″ x 14″
• Dimensions (W x D x H): Non-Finisher Model: 19-3/4” x 23-1/2” x 24-1/4”; (500 x 598 x 617 mm); Finisher Model: 19-3/4” x 23-1/2” x 32-1/8”; (502 x 598 x 814 mm)
• Power Requirement/Plug: 110-127V, 60Hz, 9.7 A/ NEMA 5-15-P
• Typical Electricity Consumption (TEC) v3.0 [One Week]: 0.55 kWh; imageFORCE
• Power Consumption: Maximum: Approx. 1,500 kW; Sleep mode: Approx. 0.35 W
• Optimum Zone (Monthly): 720F/FZ: 3-40k; 610F/FZ: 3-37k; 520F/FZ: 3-35k
• Drum Type and Yield***: Cartridge Yield:; 51,500 Images
• Document Feeder & Capacity: 100 Sheets
• Scan Speed (BW/Color, Letter): Automatic Color Select “OFF” 300 dpi; Simplex Scanning: 100 ipm; Duplex Scanning: 200 ipm; Automatic Color Select “ON” 300 dpi; Simplex Scanning: 50 ipm; Duplex Scanning:100 ipm
• Output Capacities / Trays: Non-Finisher Model: 500 Sheets ; Finisher Model: 1,000 Sheets
• Staple Capabilities (Opt.): 30 Sheets [16 to 24 lb. bond (60 to 90 gsm)]; 20 Sheets [25 to 32 lb. bond (91 to 120 gsm)]
• Printer Controller(s) (Supported PDLs): Std. UFR II, PCL6/PCL5, Adobe® PostScript® 3TM
• Network Interfaces: Standard: 1000Base-T/100Base-TX/10Base-T; Optional: Wireless LAN (IEEE 802.11a/b/g/n/ac/ax)
• Other Interfaces: Standard: USB 2.0 (Host) x 1, USB 3.0 (Host) x 1,; USB 2.0 x 1 (Device); Optional: Serial Interface, Copy Control Interface
• Delivery Options: Standard: E-mail/Internet FAX (SMTP9), SMB, FTP, WebDAV,; Mail Box, Super G3 FAX; Optional: IP Fax
• Authentication/Access Control: User Authentication (Picture Login, Picture and PIN Login,; Card Login, Username and Password Login, Function; Level Login, Mobile Login), Department ID Authentication; (Department ID and PIN Login, Function Level Login),; uniFLOW Online/uniFLOW10 (PIN Login, Picture Login, Picture; and PIN Login, Card Login, Card and PIN Login, Username and; Password Login, Department ID and PIN Login, Function Level; Login), Microsoft Entra ID Authentication (Password Login,; Card Login), Two-Factor Authentication at LUI/RUI, Access; Management System (Access Control)
• Document Security: Print Security (Secure Print, Encrypted Secure Print,; Forced Hold Printing, uniFLOW Secure Print10), Receive; Data Security (Confidential Fax Inbox Forwarding Received; Documents Automatically), Scan Security (Encrypted PDF,; Device Signature PDF/XPS, User Signature PDF/XPS), BOX; Security (Mail Box Password Protected, Advanced Box; Access Control), Send Data Security (Setting for requesting; password input per transmission, Restricted E-mail/File send; functions, Confirming FAX number, Allow/Restrict Fax Driver; Transmissions, Allow/Restrict Sending from History, S/MIME; Support), Secure Watermark
• Network Security: TLS 1.3 (FIPS140-3), IPSec (FIPS140-3), IEEE802.1X; authentication, SNMPv3, Firewall Functionality (IP/MAC; Address Filtering), Dual Network Support (Wired LAN/; Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi),; Enabling/Disabling (Network Applications, Remote UI, USB; Interface), G3 FAX separation from LAN, USB Port separation; from LAN, Prohibit the execution of files stored in Advanced; Box in the MFP, Scan and Send -Virus Concerns for E-mail; Reception, Cooperating with External Security Audit System; (SIEM: Security Information and Event Management)
• Device Security: Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD; Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE; LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal; Function, Protecting MFP Software Integrity: Verify System; at Startup (NIST SP800-193: Protection), Checking MFP; Software Integrity & Platform Firmware Resiliency: Automatic; System Recovery (NIST SP800-193: Recovery), Runtime; Intrusion Detection: Trellix Embedded Control, HCD-PP; Common Criteria Certification (Validation Pending)
• Send File Formats: TIFF (MMR), JPEG, PDF (Compact, Searchable, Optimize for; Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature,; User Signature), XPS (Compact, Device Signature, User; Signature), Office Open XML (PowerPoint, Word)
• Fax Memory: Up to 30,000 pages
• Environmental Information: ENERGY STAR® certified, EPEAT-Gold
• Accessibility Options: Std: Remote Operator’s Software Kit; Opt: Braille Label Kit-G1, ADF Access Handle-A1
