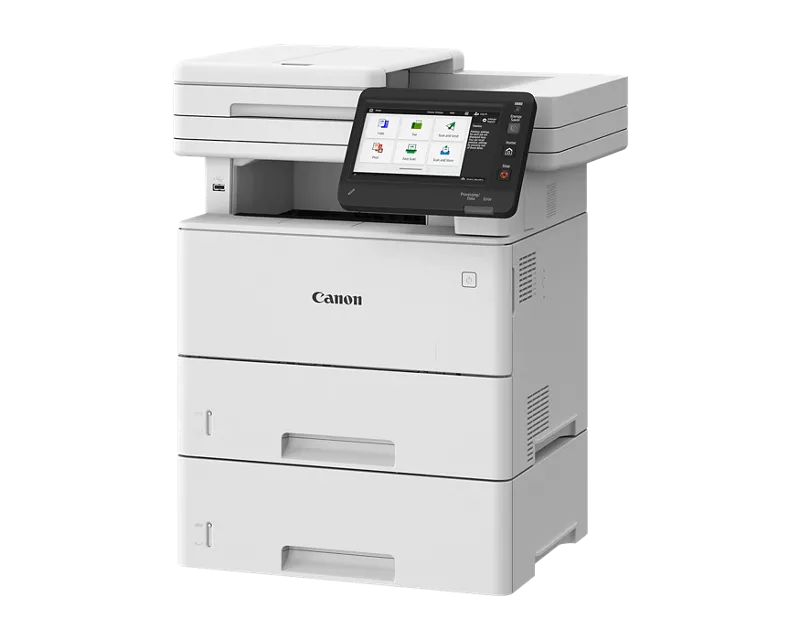

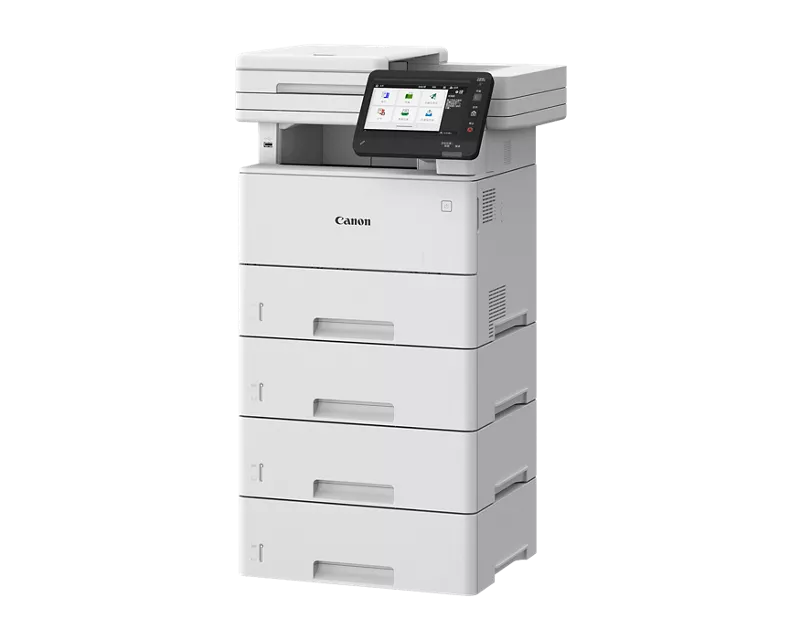

imageFORCE 1643F

Description

Part of the imageFORCE 1643/1643F family.

Full Specifications

• Copy: Std.
• Mail Box: Std.
• Advanced Box: Std.
• Network Print: Std.
• Network Scan: Std. (1643F)
• Fax: Std.
• Send: Std.
• Scan to USB/Print from USB: Std.
• Web Access: Std.
• Access Management System: Std.
• Unified Firmware Platform (UFP): Std.
• MEAP: Std.
• Wi-Fi Connectivity: Std.
• Output Speed (BW / Color): Up to 45 ppm
• First Copy Out Time: Approx. 6 seconds or less
• Warm-up Time (From Power On): Approx. 4 Seconds or less
• User Interface: 7 inch TFT LCD WVGA Color Touch Panel
• Customizable Background: Std.
• Memory: 2.0 GB
• Storage Capacity: 64 GB eMMC (available space 30 GB)
• Standard Paper Capacity: 650 Sheets
• Maximum Paper Capacity: 2,300 Sheets
• Paper Weights: 16 lb. Bond to 44.4 lb. Cover (60 to 120 g/m2)(Cassettes); 16 lb. Bond to 73.6 lb. Cover (60 to 199 g/m2) (Bypass)
• Max. Output Size: 8.5″ x 14″
• Dimensions (W x D x H): 18-7/8″ x 20-3/8″ x 18″ (480 x 518 x 458 mm)
• Power Requirement/Plug: 110-127V AC / 60 Hz / 6.4 A /NEMA 5-15P
• Typical Electricity Consumption (TEC) v3.0 [One Week]: 0.39 kWh
• Power Consumption: Maximum: Approx. 1,400 W; Sleep Mode: Approx. 1.0 W
• Optimum Zone (Monthly): 1.5K-20K Pages
• Drum Type and Yield***: Cartridge Yield:; 20,500 Pages
• Document Feeder & Capacity: 50 Sheets
• Scan Speed (BW/Color, Letter): One-Sided Scanning: 50/50 (300 x 300 dpi, send), ; 50 (300 x 600 dpi, copy) ; Two-Sided Scanning: 100/100 (300 x 300 dpi, send), ; 100 (300 x 600 dpi, copy)
• Output Capacities / Trays: Standard: 150 Sheets ; Maximum: 150 Sheets
• Printer Controller(s) (Supported PDLs): UFR II, PCL6/PCL5, Adobe® PostScript®3™
• Network Interfaces: 1000Base-T/100Base-TX/10Base-T, Wireless LAN ; (IEEE 802.11 b/g/n)
• Other Interfaces: Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1
• Delivery Options: E-mail/Internet FAX (SMTP), SMB, FTP, WebDAV, Mail Box ; Available OAuth 2.0 authentication method on Microsoft 365 and Google Workspace
• Authentication/Access Control: User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Microsoft Entra ID Authentication (Password Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control)
• Document Security: (Secure Print, Encrypted Secure Print, ; Forced Hold Printing, uniFLOW Secure Print), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, ; S/MIME Support)
• Network Security: TLS 1.3 (FIPS 140-3), IPSec (FIPS 140-3), IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception, Cooperating with External Security Audit System (SIEM: Security Information and Event Management)
• Device Security: Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control
• Send File Formats: TIFF (MMR), JPEG, PDF (Compact, OCR (Text Searchable), Optimize for Web, PDF/A-1b, Trace&Smooth, Encrypted, Device Signature, User Signature, XPS (Compact, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
• Fax Memory: Up to 30,000 Pages (2,000 jobs)
• Environmental Information: ENERGY STAR® certified ; EPEAT Silver
• Accessibility Options: Std: Remote Operator’s Software Kit
