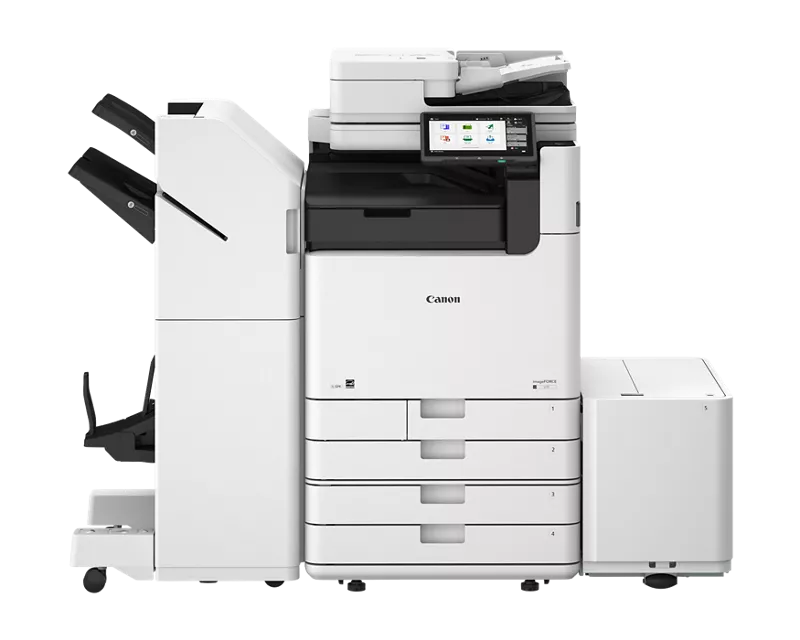

imageFORCE 6170

Description

Part of the imageFORCE 6170 / 6160 / 6155 family.

Full Specifications

• Copy: Std.
• Mail Box: Std.
• Advanced Box: Std.
• Network Print: Std.
• Network Scan: Std.
• Fax: Opt. (Up to 4-Lines)
• Send: Std. Color Send
• Scan to USB/Print from USB: Std.
• Web Access: Std.
• Access Management System: Std.
• Unified Firmware Platform (UFP): Std.
• MEAP: Std.
• Wi-Fi Connectivity: Std.
• Output Speed (BW / Color): 70 ppm
• First Copy Out Time: 2.7 sec
• Warm-up Time (From Power On): Approx. 6 Seconds*
• User Interface: 10.1″ TFT LCD WSVGA Color Flat-panel
• Customizable Background: Std.
• Memory: Std. 6GB
• Storage Capacity: Std. 256 GB/ Max 1TB (SSD)
• Standard Paper Capacity: 1,200 Sheets
• Maximum Paper Capacity: 6,350 Sheets
• Paper Weights: 14lb. Bond to 140lb. Index (52 to 256 g/m2) (Decks/Cassettes); 14lb. Bond to 110lb. Cover (52 to 300 g/m2) (Multi-Purpose Tray)
• Max. Output Size: 12-5/8″ x 18″
• Dimensions (W x D x H): Standard: 24-3/8″ x 28-1/2″ x 36-7/8″; (620 mm x 722 mm X 937 mm)
• Power Requirement/Plug: 110-127V, 60Hz, 12A / NEMA 5-15P
• Typical Electricity Consumption (TEC) v3.0 [One Week]: 0.76 kWh
• Power Consumption: Maximum: 1,800 W; Sleep Mode: 0.80 W
• Optimum Zone (Monthly): 20-70K Pages
• Toner Yield***: Black: 65,500 Pages @ 6%
• Document Feeder & Capacity: Std. Single Pass DADF/200 Sheets
• Scan Speed (BW/Color, Letter): Simplex: 135/135ipm (300 dpi), 80/80ipm (600 dpi); Duplex: 270/270ipm (300 dpi), 160/90ipm (600 dpi)
• Output Capacities / Trays: 350 Sheets (Opt. Inner 2-Way Tray-M1); 250 Sheets (Opt. 1st Copy Tray Kit-B1); 100 Sheets (Opt. 3rd Copy tray Kit-A1)
• Output Capacities / Finishers (Opt.): 550 Sheets (Inner Finisher-N1); 1,750 sheets (Staple Finisher Lite-A1); 3,250 Sheets (Staple Finisher-AB3 or Booklet Finisher-A2 with Tri-Fold)
• Staple Capabilities (Opt.): 65 Sheets [On Demand](Staple Finisher-AB3, Booklet Finisher-A2 with Tri-Fold, STaple Finisher Lite-A1); 40 Sheets Staple On Demand (Inner Finisher-N1); 10- Sheets Eco-Staple (Staple Finisher-AB3 or Booklet Finisher-A2 with Tri-Fold, Inner Finisher-N1); 10 Sets [20 Sheets] (Booklet Finisher-A2 with Tri-Fold)
• Hole Puncher(s) and others (Opt.): Inner 2/3 Hole Puncher-D1 (for Inner Finisher- N1); 2/3 Hole Puncher Unit-A1 (for Staple Finisher-AB3, Staple Finisher Lite-A1 or Booklet Finisher-A2 with Tri-Fold)
• Printer Controller(s) (Supported PDLs): Std. UFR II, PCL6, Adobe® PostScript® 3TM
• Network Interfaces: Standard: 1000Base-T/100Base-TX/10Base-T; Optional: Wireless LAN(IEEE 802.11a/b/g/n/ac/ax)
• Other Interfaces: Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1; ; Optional: Serial Interface, Copy Control Interface
• Delivery Options: Standard: E-Mail, I-Fax (SMTP, POP3), File Server (FTP, SMB 3.0, WebDAV), ; Mail box; Optional: Super G3 Fax, IP Fax
• Authentication/Access Control: Standard: Universal Login Manager, 17 User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in; Optional: uniFLOW
• Document Security: Standard: Trusted Platform Module (TPM), Solid State Drive Password Lock, Solid State Drive Initialization, Mail Box Password Protection, Solid State Drive Encryption (FIPS140-3 Validated), Verify System at Startup, McAfee Embedded Control; Optional: Solid State Drive Mirroring, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention**
• Network Security: Standard: Encrypted Secure Print, IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration
• Device Security: Standard: Secure Watermark, Secure Print, Adobe LiveCycle Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Digital Signature, User Signature
• Send File Formats: Standard: TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, PDF A/1-b, Limited Color Device Signature ), XPS (Compact, Searchable, Device Signature ), Office Open XML (PowerPoint, Word), PDF (Trace & Smooth, User Signature ), XPS (User Signature )
• Fax Memory: up to 30,000 pages
• Environmental Information: ENERGY STAR® certified, RoHS Compliant, ; WEEE Directive, EPEAT® Gold
• Accessibility Options: Std: Remote Operator’s Software Kit; Opt: Braille Label Kit-G1, ADF Access Handle-A1, Voice Operation Kit-D1
