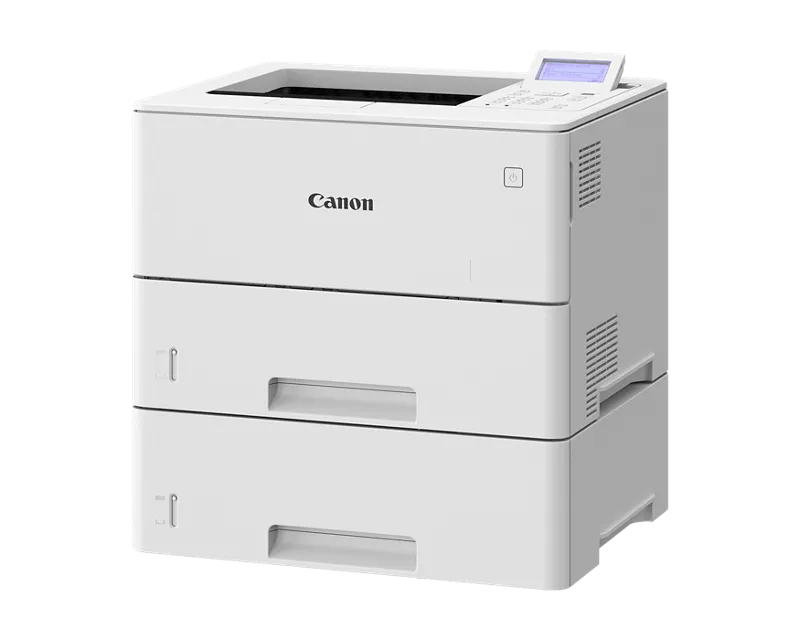

imageFORCE 1643P

Description

Part of the imageFORCE 1643P family.

Full Specifications

• Network Print: Std
• Web Access: Std.
• Access Management System: Std.
• Unified Firmware Platform (UFP): Std.
• MEAP: Std.
• Wi-Fi Connectivity: Std.
• Output Speed (BW / Color): Up to 45 ppm
• First Copy Out Time: Approx. 6 seconds or less
• Warm-up Time (From Power On): Approx. 2 Seconds or less

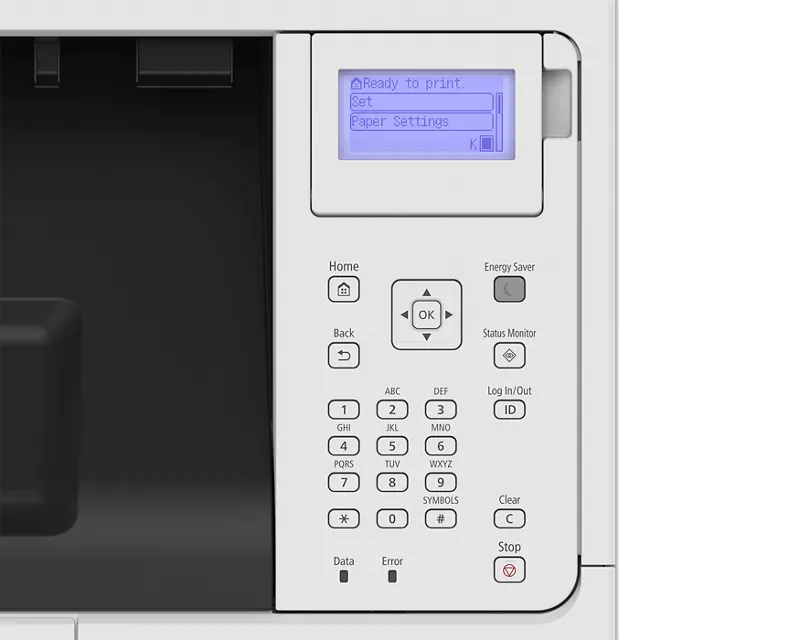

• User Interface: 5-Line LCD Panel
• Memory: 2.0 GB
• Storage Capacity: 32 GB eMMC (available space 15 GB)
• Standard Paper Capacity: 650 Sheets

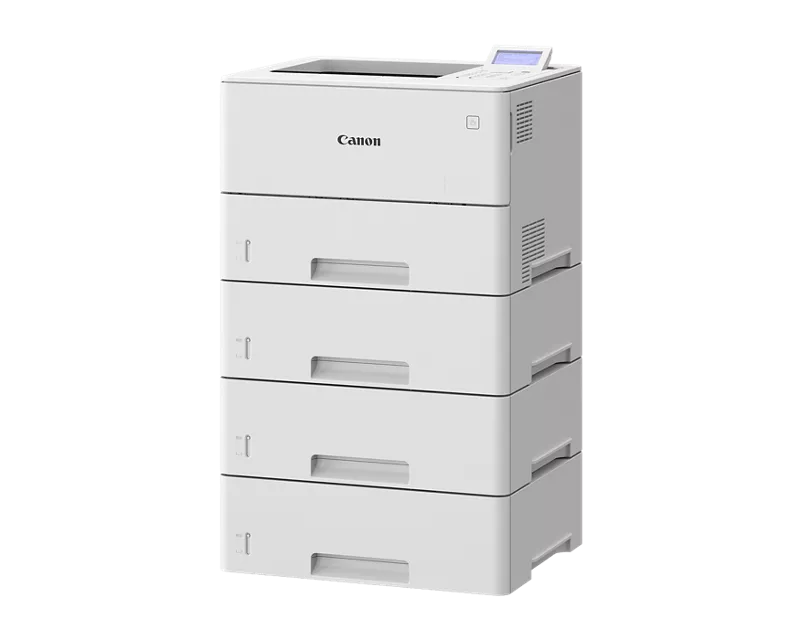

• Maximum Paper Capacity: 2,300 Sheets
• Paper Weights: 16 lb. Bond to 44.4 lb. Cover (60 to 120 g/m2)(Cassettes); 16 lb. Bond to 73.6 lb. Cover (60 to 199 g/m2) (Bypass)
• Max. Output Size: 8.5″ x 14″
• Dimensions (W x D x H): 16-1/8″ x 14-7/8″ x 10-7/8″ (409 x 376 x 275 mm)
• Power Requirement/Plug: 110-127V AC / 60 Hz / 6.2 A /NEMA 5-15P
• Typical Electricity Consumption (TEC) v3.0 [One Week]: 0.37 kWh
• Power Consumption: Maximum: Approx. 1,400 W; Sleep Mode: Approx. 1.0 W
• Optimum Zone (Monthly): 1.5K-20K Pages
• Drum Type and Yield***: Cartridge Yield:; 20,500 Pages
• Printer Controller(s) (Supported PDLs): Std. UFR II, PCL6, Adobe® PostScript® 3TM
• Network Interfaces: 1000Base-T/100Base-TX/10Base-T, Wireless LAN ; (IEEE 802.11 b/g/n)
• Other Interfaces: Standard: USB 2.0 (Host) x1, USB 2.0 (Device) x1
• Authentication/Access Control: User Authentication (Card Login, Username and Password Login), Department ID Authentication (Depertment ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW (PIN Login, Card Login, Card and PIN Login), Microsoft Entra ID Authentication (Card Login), Two-Factor Authentication at RUI, Access Management System (Access Control)
• Document Security: Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print)
• Network Security: TLS 1.3 (FIPS 140-3), IPSec (FIPS 140-3), IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception, Cooperating with External Security Audit System (SIEM: Security Information and Event Management)
• Device Security: Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control
• Environmental Information: ENERGY STAR® certified ; EPEAT Silver
• Accessibility Options: Std: Remote Operator’s Software Kit
