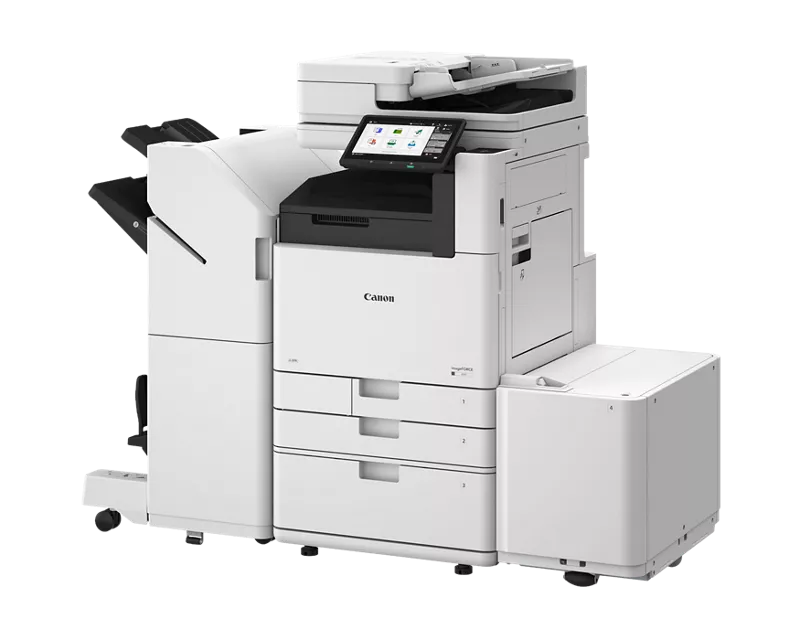

imageFORCE 4135

Description

Part of the imageFORCE 4145/4135/4125 family.

Full Specifications

• Copy: Std.
• Mail Box: Std.
• Advanced Box: Std.
• Network Print: Std.
• Network Scan: Std.
• Fax: Opt. (Up to 4-Lines)
• Send: Std. Color Send
• Scan to USB/Print from USB: Std.
• Web Access: Std.
• Access Management System: Std.
• Unified Firmware Platform (UFP): Std.
• MEAP: Std.
• Wi-Fi Connectivity: Optional
• Output Speed (BW / Color): 35 ppm
• First Copy Out Time: Approx. 5.5 sec
• Warm-up Time (From Power On): Approx. 10 Seconds*
• User Interface: Std. 10.1″ TFT LCD WSVGA Color Touch panel
• Customizable Background: Std.
• Memory: Std. 5 GB
• Storage Capacity: Std. 256 GB/ Max 1TB
• Standard Paper Capacity: 1,200 Sheets
• Maximum Paper Capacity: 6,350 Sheets
• Paper Weights: 14lb. Bond to 140lb. Index (52 to 256 g/m2) (Decks/Cassettes); 14lb. Bond to 110lb. Cover (52 to 300 g/m2) (Multi-Purpose Tray)
• Max. Output Size: 12″ x 18″
• Dimensions (W x D x H): With Platen Cover-Y3: 22-1/4” x 29-3/8” x 31” (565 x 745 x 788 mm); With Single Pass DADF-E1: 22-1/4” x 29-3/8” x 35-3/8” (565 x 745 x 897 mm); With Single Pass DADF-F1: 22-1/4” x 29-3/8” x 34” (565 x 745 x 862 mm)
• Power Requirement/Plug: 120-127 V 60 Hz 8.5A / NEMA 5-15P
• Typical Electricity Consumption (TEC) v3.0 [One Week]: 0.31 kWh
• Power Consumption: Maximum: 1,500 W; Sleep Mode: 0.5 W
• Optimum Zone (Monthly): 5-45K​ Pages
• Drum Type and Yield***: OPC (E-Drum); 140K Pages
• Toner Yield***: 42,000 Pages @ 6%
• Document Feeder & Capacity: Single Pass DADF-E1: up to 200 Sheets; Single Pass DADF-F1: up to 100 Sheets
• Scan Speed (BW/Color, Letter): Single Pass DADF-E1:; Simplex: 135/135 (300 dpi), 80/80 (600 dpi); Duplex: 270/270 (300 dpi), 160/160 (600 dpi); ; Single Pass DADF-F1: ; Simplex: 80/80 (300 dpi), 60/60 (600 dpi) ; Duplex: 120/120 (300 dpi), 60/60 (600 dpi)
• Output Capacities / Trays: 350 Sheets (Opt. Inner 2-Way Tray-M1); 250 Sheets (Opt. 1st Copy Tray Kit-C1); 100 Sheets (Opt. Copy Tray Kit-T2)
• Output Capacities / Finishers (Opt.): 550 Sheets (Inner Finisher-N1); 1,750 sheets (Staple Finisher Lite-B1); 3,250 Sheets (Staple or Booklet Finisher-AH1)
• Staple Capabilities (Opt.): 50 Sheets [On Demand](Staple Finisher-AH1, Booklet Finisher-AH1, Staple Finisher Lite-B1); 40 Sheets Staple On Demand (Inner Finisher-N1); 10- Sheets Eco-Staple (Staple Finisher-AH1, Booklet Finisher-AH1, Inner Finisher-N1); 10 Sets [20 Sheets] (Booklet Finisher-AH1)
• Hole Puncher(s) and others (Opt.): Inner 2/3 Hole Puncher-D1 (for Inner Finisher- N1); 2/3 Hole Puncher Unit-A1 (for Staple Finisher-AH1, Staple; Finisher Lite-B1, Booklet Finisher-AH1)
• Printer Controller(s) (Supported PDLs): Std. UFR II, PCL6, Adobe® PostScript® 3TM
• Network Interfaces: Standard: 1000Base-T/100Base-TX/10Base-T ; Option/Al: Wireless LAN (IEEE 802.11 b/g/n)
• Other Interfaces: Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device), ; Option/Al: Serial Interface, Copy Control Interface
• Delivery Options: Standard: E-Mail, I-Fax (SMTP), File Server (FTP, SMB 3.1.1, WebDAV), ; Mail box; Option/Al: Super G3 Fax, IP Fax
• Authentication/Access Control: Standard: Universal Login Manager, 17 User Authentication, Department ID Authentication, Access Management System, Device and Function Level Log-in; Optional: uniFLOW
• Document Security: Standard: Trusted Platform Module 2.0 (TPM), Solid State Drive Password Lock, Mail Box Password Protection, Solid State Drive Encryption (FIPS140-3, Verify System at Startup with Firmware Resiliency, McAfee Embedded Control & Status Display Optional: Solid State Drive Mirroring, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention****
• Network Security: Standard: Encrypted Secure Print, IP/Mac Address Filtering, IPsec, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME, SIEM Integration
• Device Security: Standard: Secure Watermark, Secure Print, Adobe LiveCycle Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Digital Signature ; Optional: User Signature
• Send File Formats: Standard: TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, PDF A/1-b, Limited Color Device Signature ), XPS (Compact, Searchable, Device Signature ), Office Open XML (PowerPoint, Word); Optional: PDF (Trace & Smooth, User Signature ), XPS (User Signature )
• Fax Memory: up to 30,000 pages
• Environmental Information: ENERGY STAR® Certified, RoHS Compliant, ; WEEE Directive, Rated EPEAT® Gold
• Accessibility Options: Std: Remote Operator’s Software Kit; Opt: Braille Label Kit-G1, ADF Access Handle-A1, Voice Operation Kit-D1
